A mechanical permit authorizes work on a building's heating, ventilation, air conditioning, and gas piping systems. If you are replacing a furnace, adding ductwork, installing a rooftop unit, or running a gas line to a new appliance, you almost certainly need one.
Mechanical permits are among the three trade permits, alongside electrical and plumbing, and a single project often requires more than one. The permit exists because mechanical systems move heat, combustion gases, and air through occupied spaces, and a mistake can create a safety problem with serious consequences.
Key Takeaways
- A mechanical permit covers HVAC, ductwork, and gas piping. Furnaces, air conditioners, heat pumps, exhaust systems, boilers, and gas lines all fall under it.
- Like-for-like replacement usually still needs a permit. Swapping a furnace for the same model is not automatically exempt, and most jurisdictions require one anyway.
- Combustion safety and venting are the core concerns. Inspectors focus on flue routing, combustion air, and clearances because carbon monoxide risk is the reason the permit exists.
- Many mechanical permits are issued over the counter. Straightforward equipment swaps often do not require plan review.
- Unpermitted mechanical work surfaces at resale. It shows up in inspection and disclosure, and it can complicate insurance claims.
- Mechanical work is classified by what was installed, not just the permit label. Shovels tags HVAC, heat pump, water heater, and gas work as separate permit categories across jurisdictions nationwide, so you can follow each type of work on its own.
What Is a Mechanical Permit?
A mechanical permit is a building permit that authorizes installation, replacement, or alteration of a building's mechanical systems: heating, ventilation, air conditioning, refrigeration, and gas piping. It is issued by the local Authority Having Jurisdiction (AHJ), typically the city or county building department, and requires inspection before the work is considered complete and legal.
Mechanical permits sit alongside electrical and plumbing permits as one of the trade permits. A single project often needs several. Replacing a gas furnace with a heat pump, for example, usually requires both a mechanical permit for the equipment and ductwork and an electrical permit for the new circuit.
The scope varies by jurisdiction but generally covers:
- Furnaces, boilers, and heat pumps
- Air conditioners and refrigeration systems
- Ductwork installation, replacement, or modification
- Exhaust and ventilation systems, including kitchen hoods and bath fans
- Gas piping and appliance connections
- Chimneys, flues, and venting
Why Mechanical Permits Exist
The short answer is combustion and air movement. Both are dangerous when done wrong and hard to inspect after the fact.
A gas furnace burns fuel inside an occupied building and vents the exhaust outside. If the flue is undersized, improperly sloped, or terminated too close to a window, combustion gases including carbon monoxide can re-enter the building. That failure is silent. There is no leak to see and no sound to hear.
Ventilation carries similar stakes. Undersized return air causes equipment to short-cycle and fail early. Ductwork that runs through unconditioned space without sealing wastes energy from the system. Kitchen exhaust that terminates into an attic instead of outdoors can deposit grease and create a fire hazard.
There is also an equipment-sizing dimension. Most codes now require a load calculation rather than a rule-of-thumb estimate, because oversized equipment cycles inefficiently and controls humidity poorly.
When Do You Need a Mechanical Permit?
The threshold for a permit is lower than many people expect. Work that typically requires a permit includes:
- Installing or replacing a furnace, boiler, air conditioner, or heat pump
- Adding, removing, or rerouting ductwork
- Installing a new gas line or extending an existing one to an appliance
- Replacing a water heater, in many jurisdictions
- Installing a kitchen hood, bath exhaust fan, or whole-house ventilation
- Adding a mini-split or ductless system
Work that is usually exempt:
- Replacing a thermostat
- Changing filters or performing routine maintenance
- Cleaning ducts
- Repairing existing equipment without replacing it
The common misconception is that like-for-like replacement is exempt. In most jurisdictions it is not. Swapping a failed furnace for the same model still triggers a permit, because the venting, gas connection, and combustion air have to be verified against current code, and code may have changed since the original install.
Did you know? Shovels classifies mechanical permits according to the type of work: HVAC, heat pump, water heater, and gas work each get their own category, applied consistently across jurisdictions nationwide. See how permit types are structured in the Data Dictionary.
How to Get a Mechanical Permit
- Confirm who issues it. Mechanical permits come from your local building department, but in some regions a county or fire district handles them. Check with your AHJ before assuming.
- Determine whether a licensed contractor is required. Many jurisdictions will only issue mechanical permits to a licensed mechanical or HVAC contractor. Homeowner permits are sometimes available for owner-occupied single-family properties, sometimes not.
- Prepare the equipment documentation. Expect to provide make, model, capacity, efficiency rating, and often a manufacturer specification sheet.
- Run the load calculation if required. Most jurisdictions now require a Manual J or equivalent sizing calculation for new equipment rather than a replacement of identical capacity.
- Submit the application. Simple equipment swaps frequently qualify for an over-the-counter permit and are issued the same day. Larger commercial systems go through plan review.
- Schedule inspections. Most mechanical work gets a rough inspection before anything is concealed, then a final inspection once the system is operating.
- Close the permit. An open mechanical permit is a problem later, at sale or refinance. Confirm the final inspection is recorded and the permit is complete.

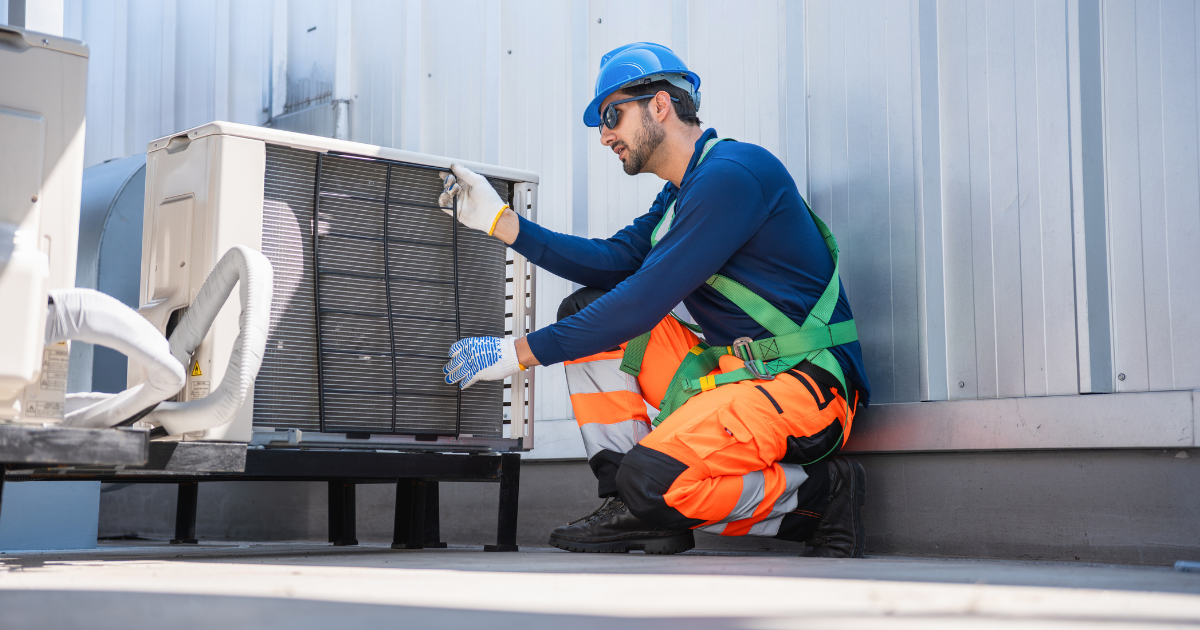

Mechanical permit inspections check a variety of items including ductwork, equipment, and electric.
What Inspectors Check
Mechanical inspections concentrate on a consistent set of items:
- Venting and flue routing, slope, material, clearance to combustibles, and termination location
- Combustion air supply adequate for the appliance in its enclosure
- Gas piping sizing, material, support, and a pressure test
- Condensate drainage routed to an approved location, with a secondary pan or safety switch where required
- Ductwork sealing, insulation in unconditioned space, and support
- Equipment clearances for service access and to combustible materials
- Electrical disconnect present and accessible at the equipment
Failed inspections most often come down to venting clearances, missing condensate protection, and duct sealing.
Common Mistakes with Mechanical Permits
Most mechanical permit problems are procedural rather than technical, and they tend to be the same few missteps repeated across projects. These are the ones that cause the most trouble:
- Pulling the permit after the work is done. Some jurisdictions allow retroactive permits, some assess penalties, and either way concealed work may have to be opened up for inspection.
- Assuming a replacement is exempt. The most frequent source of unpermitted work in mechanical systems.
- Skipping the load calculation. A rejected application over missing sizing documentation delays the whole job.
- Leaving the permit open. Passing inspection is not the same as closing out the permit. Open permits show up in title work.
- Forgetting the companion electrical permit. New equipment on a new circuit needs both.
Mechanical Permit Requirements Vary by Jurisdiction
There is no national mechanical permit. Most US jurisdictions base their rules on the International Mechanical Code or the Uniform Mechanical Code, but adoption year and local amendments differ, and California layers Title 24 energy requirements on top.
Practical differences you will encounter between neighboring jurisdictions:
- Whether a homeowner can pull the permit at all
- Whether water heaters fall under mechanical or plumbing
- Whether a load calculation is required for a same-capacity replacement
- Fee structure, sometimes flat, sometimes based on equipment count or project valuation
- Whether the permit can be issued over the counter
A few states also run mechanical permitting at the state level. Mechanical code enforcement there may be handled by the state, the county, or the local unit of government, depending on the address. Check it before filing, because the application, fee schedule, and inspection scheduling differ depending on which agency has jurisdiction.
If you work across markets, confirm the rules per jurisdiction rather than generalizing from the last one. The full list of US permit jurisdictions is a useful starting point.
Shovels classifies mechanical work into separate permit categories, so HVAC, heat pump, water heater, and gas activity are each easy to isolate. You can look up addresses for free by signing up for Shovels Online, or see exactly how permit types and fields are structured in the Data Dictionary.
Frequently Asked Questions
- Do I need a mechanical permit to replace my furnace?
-
In most jurisdictions, yes. Replacing a furnace requires a mechanical permit even when the new unit matches the old one, because venting, gas connection, and combustion air must be verified against current code. Confirm with your local building department, since a small number of jurisdictions exempt identical-capacity replacements.
- Do I need a mechanical permit in Michigan, and who issues it?
-
Yes. In Michigan, mechanical work cannot start until a permit has been issued by the appropriate enforcing agency, with an exception for replacement of minor parts. That enforcing agency may be the state, the county, or the local unit of government depending on your address. Michigan's Bureau of Construction Codes maintains a Statewide Jurisdiction List showing which agency covers each area, and permits from the state can be applied for online. Check the list before applying.
- Can a homeowner do their own mechanical work in Michigan?
-
An owner of a single-family dwelling who occupies the residence may perform mechanical work without a mechanical contractor's license. The permit requirement still applies. Michigan requires the homeowner to secure the permit for work they perform themselves, while mechanical contractors are responsible for permits on work they perform for an owner.
- What mechanical work is exempt from a permit?
-
Exemptions vary by jurisdiction. Michigan, as one example, does not require permits for portable heating, ventilation, cooling, and evaporative cooling units, gas burners under 30,000 Btu per hour, self-contained refrigeration equipment, window air conditioners of 1.5 horsepower or less, and oil burners that do not connect to a flue. Check your own jurisdiction, since thresholds differ.
- What is the difference between a mechanical permit and a plumbing permit?
-
A mechanical permit covers heating, cooling, ventilation, and gas piping. A plumbing permit covers water supply, drainage, and waste. Water heaters sit on the boundary and are classified differently depending on the jurisdiction, so check locally rather than assuming.
- How much does a mechanical permit cost?
-
Fees typically range from under $100 for a straightforward residential equipment swap to several hundred dollars or more for commercial systems. Some jurisdictions charge a flat fee per appliance, others calculate it from project valuation. Your building department publishes a current fee schedule.
- How long does it take to get a mechanical permit?
-
Simple residential replacements are often issued the same day over the counter. Projects requiring plan review, including most commercial work and anything with significant ductwork design, generally take one to four weeks depending on the jurisdiction's backlog.
- Can a homeowner pull a mechanical permit?
-
Sometimes. Many jurisdictions allow owner-occupants of single-family homes to pull their own mechanical permits, and many others restrict issuance to licensed mechanical contractors. Gas piping work in particular is frequently limited to licensed contractors regardless of ownership.
- What happens if HVAC work was done without a permit?
-
The work becomes unpermitted, which typically surfaces during a home inspection, appraisal, or title search. Resolving it usually means applying for a retroactive permit and allowing inspection, which can require opening concealed ductwork. It may also affect an insurance claim if the equipment is implicated in a loss.
- Does a mini-split need a mechanical permit?
-
Yes, in most jurisdictions. Ductless mini-splits involve refrigerant lines, condensate management, and an electrical connection, so they typically require a mechanical permit and often a companion electrical permit.
- How can I check whether a property has mechanical permits on file?
-
Permit records are public, so you can request them from the local building department. For a faster answer, or to check many addresses at once, Shovels lets you look up full permit history by address, with mechanical work broken out into categories like HVAC, heat pump, water heater, and gas.
